Laser Fume Extractor for UV Laser Marking Machine
- Product details
-

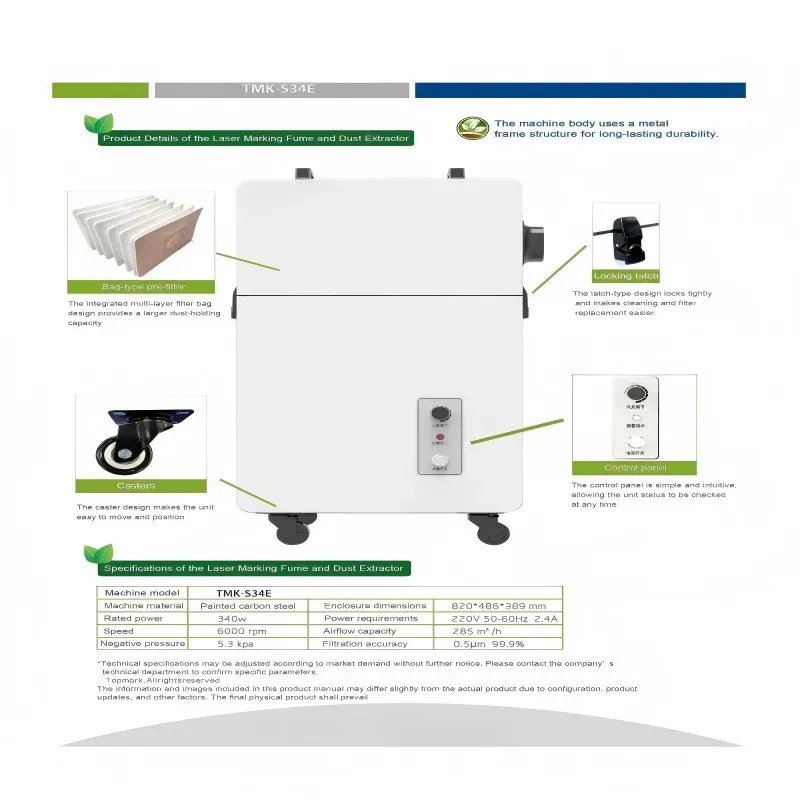

TMK-S34E Laser Marking Fume & Odor Extractor
Specification TMK-S34E Application Laser Marking Fume & Odor Extraction Enclosure Material Painted Carbon Steel Cabinet Dimensions 380 × 490 × 840 mm Power Supply 220 V, 50–60 Hz Motor Power 340 W Motor Speed 6,000 rpm Airflow Capacity 285 m³/h / approx. 168 CFM Negative Pressure 5.3 kPa Bag Filter 350 × 280 mm, 8 Pockets, F8 Grade Combination Filter 390 × 318 × 236 mm Filtration Efficiency Up to 99.9% at 0.5 μm* Odor Removal Activated Carbon Layer Airflow Control Rotary Knob Speed Control Alarm Function Filter Clogging Indicator Light Power Cord Length 3 m Product Overview

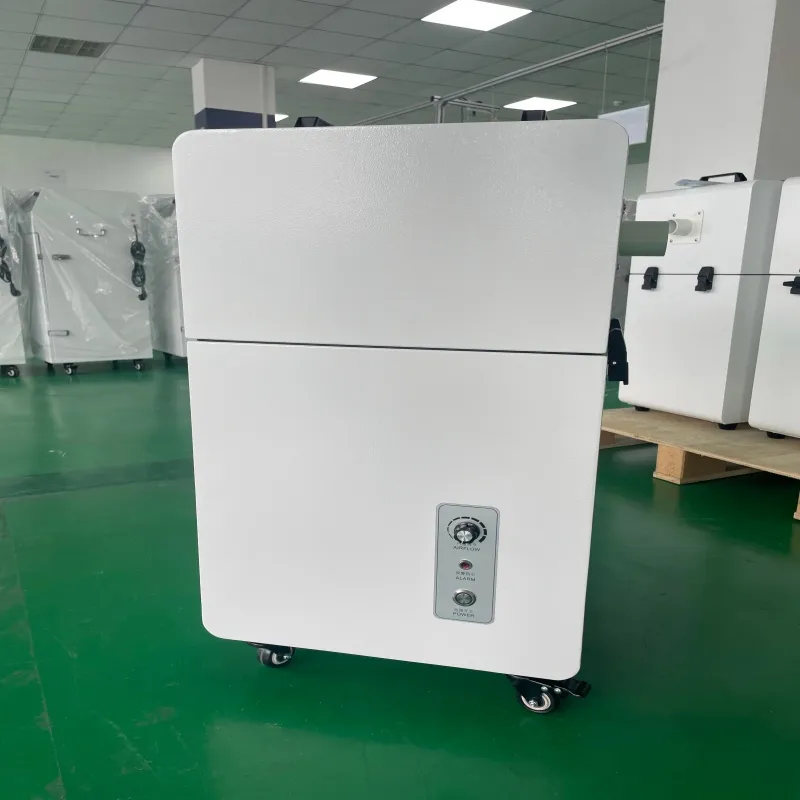

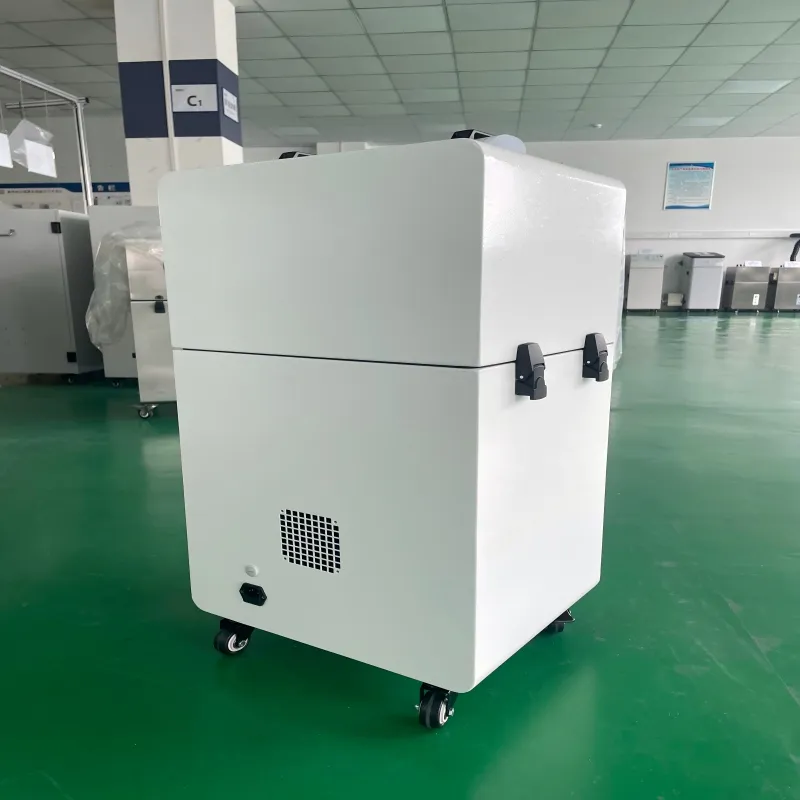

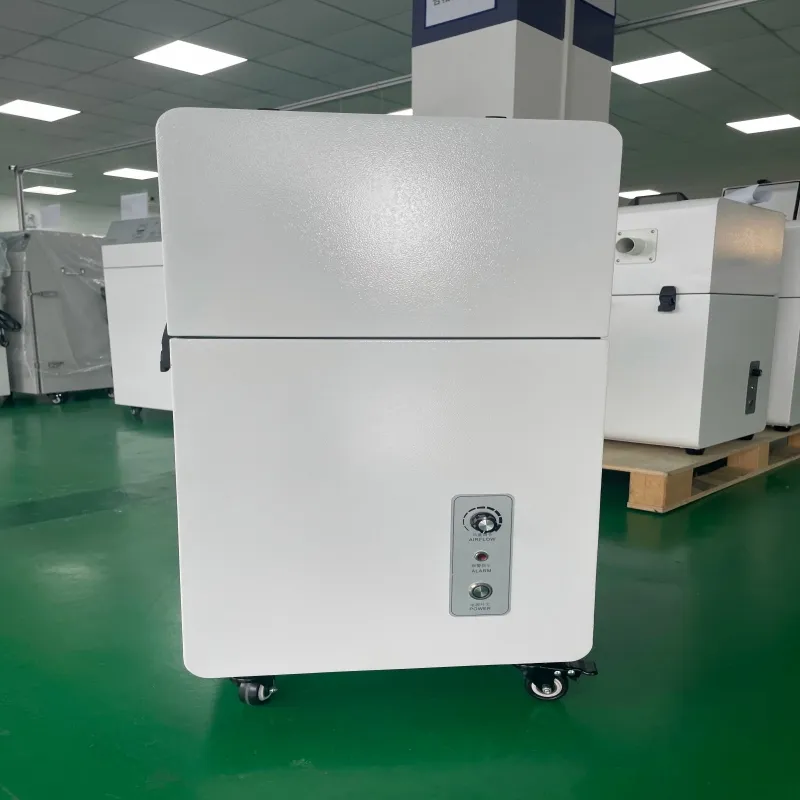

TMK-S34E Laser Marking Fume Extractor
During laser marking and engraving processes, different materials can generate varying types and concentrations of fumes and particulates. The TMK-S34E features a specially developed multi-stage filtration and purification system designed to provide targeted and efficient fume removal.
Compared with conventional single-cartridge filtration systems, its multi-layer filtration design helps capture dust, fine particulates, and unpleasant odors generated during laser processing, contributing to a cleaner and safer working environment.
The TMK-S34E Laser Marking Fume Extractor is suitable for static laser marking, UV laser marking, and low- to medium-power inline laser marking applications.
Key Advantages
1. Integrated & Mobile Design
The fume extraction and filtration system is integrated into one unit, requiring no complicated installation. Built-in caster wheels allow easy movement between workstations.
2. High-Performance DC Brushless Motor
Equipped with a high-power DC brushless motor designed for long service life, low noise, and stable airflow performance.
3. Three-Stage Filtration System
The multi-stage filtration system efficiently captures laser-generated fumes, dust, and fine particulates, helping improve the cleanliness of the working environment.
4. HEPA + Activated Carbon Combination Filter
The combination filter incorporates high-efficiency particulate filtration and an activated carbon layer to help remove fine particles and unpleasant odors.
5. Adjustable Airflow & Filter Alarm
Airflow can be adjusted according to different laser processing conditions. A built-in filter clogging indicator alerts the operator when filter maintenance or replacement is required.
